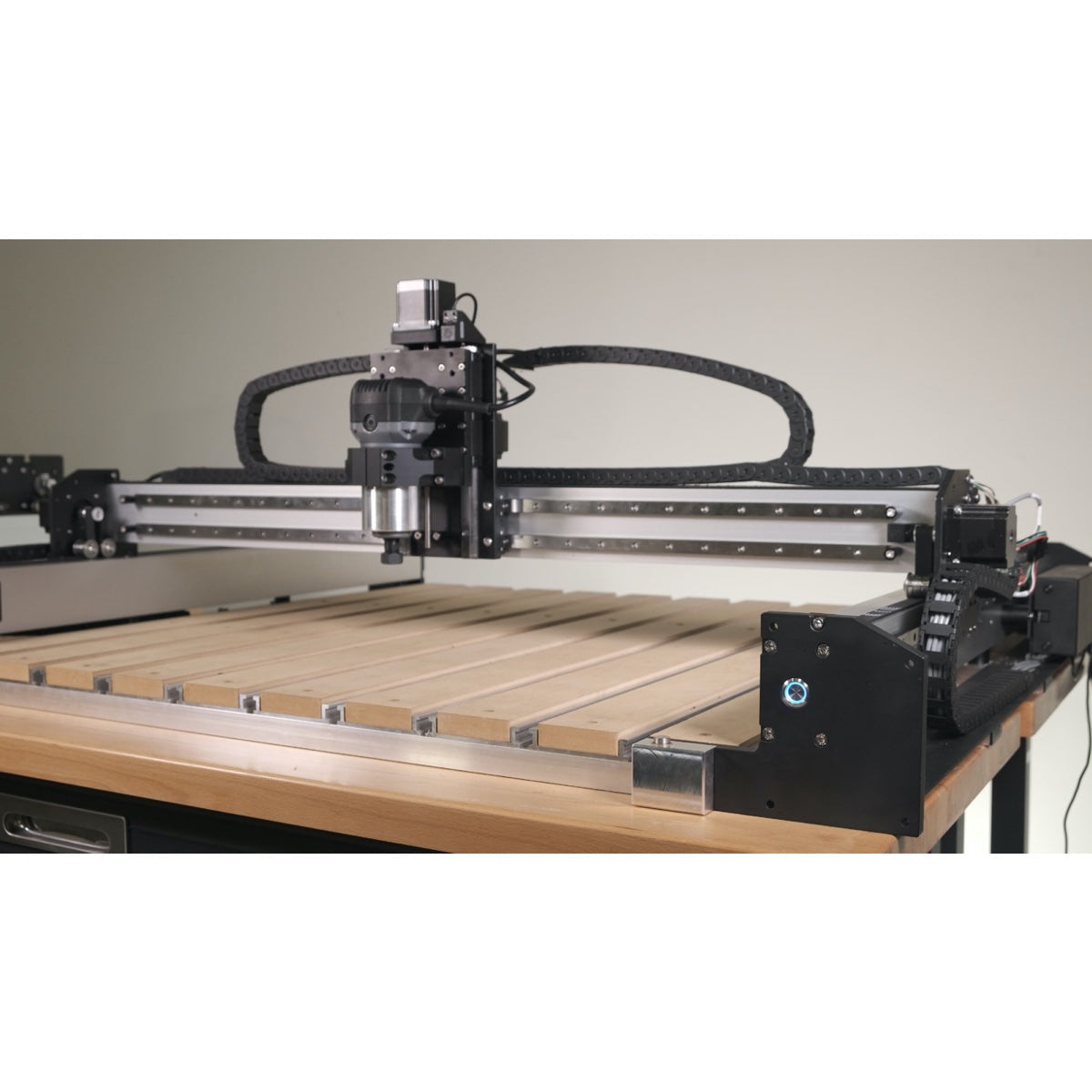

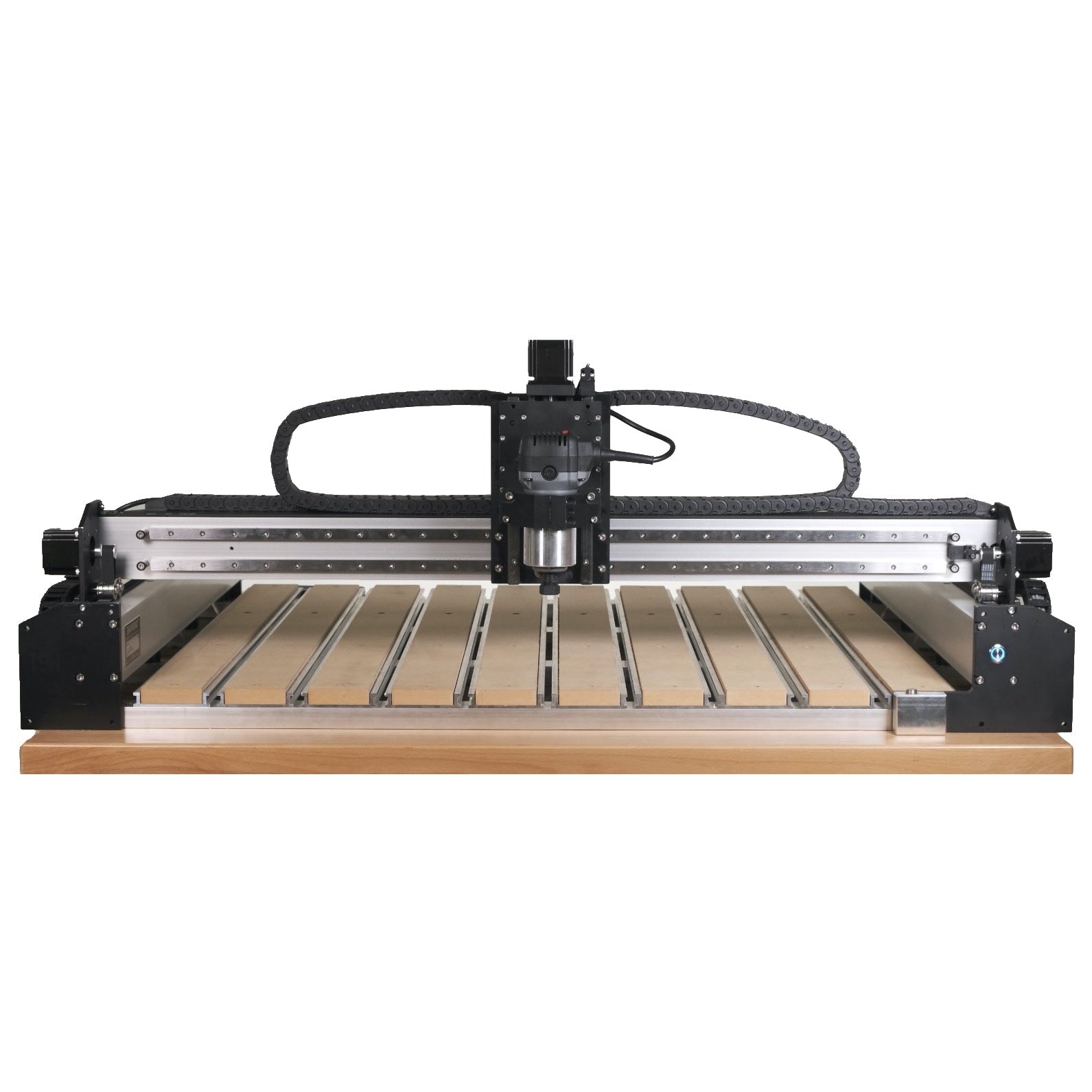

Shapeoko Pro is a CNC router that can run all day long. It's a great choice for anyone who wants to make a living with their CNC machine or who wants to push their machine to the limit.
NOTE: Photos above are from a pre-production machine. The final product will be cosmetically different. Photos show our optional Carbide Compact Router (not included).

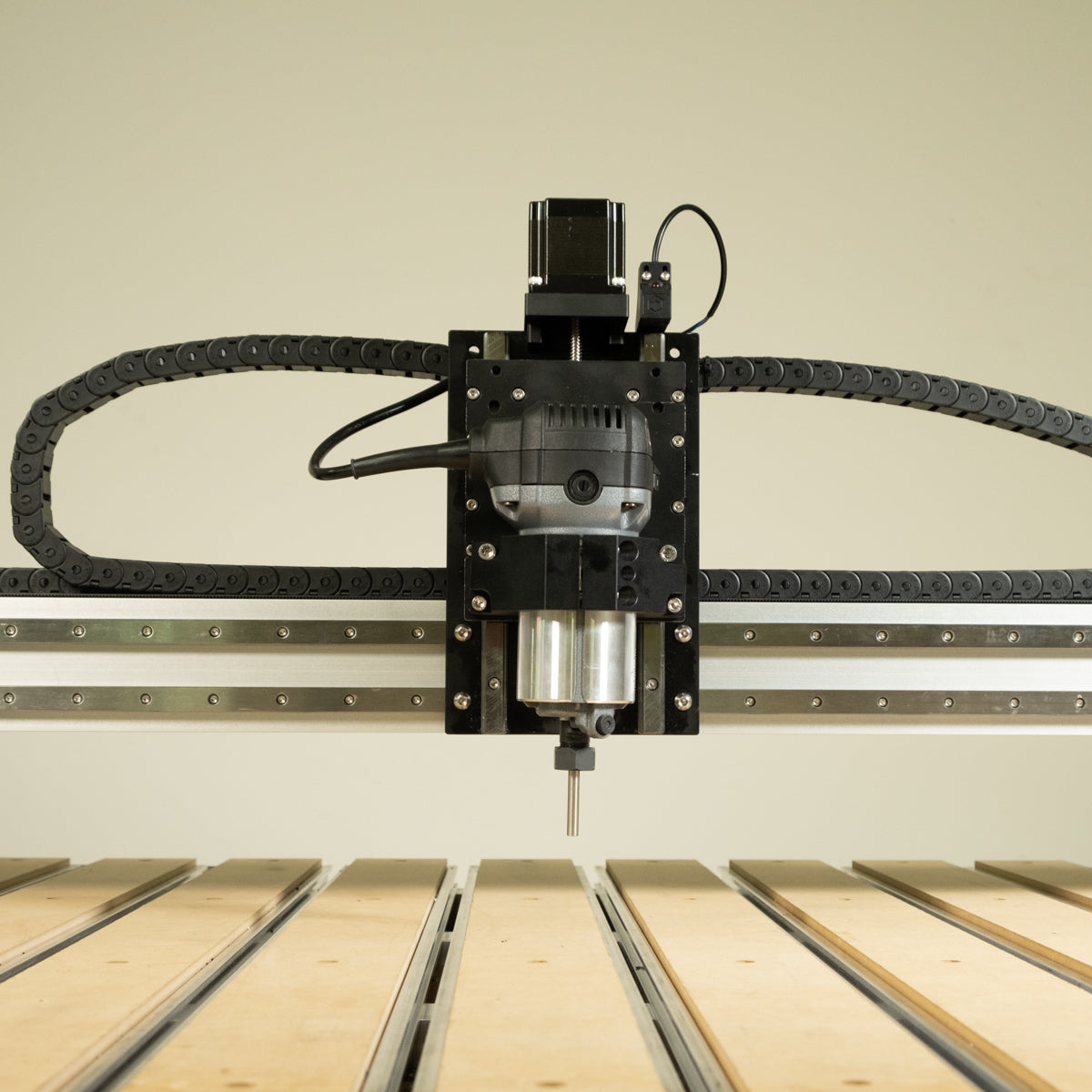

Linear rails provide greater rigidity than the V-wheels used on the Shapeoko 4 so you can push Shapeoko Pro harder for more productivity.
Our new, wider belts are over 60% stiffer than the 9mm belts used in Shapeoko 3.

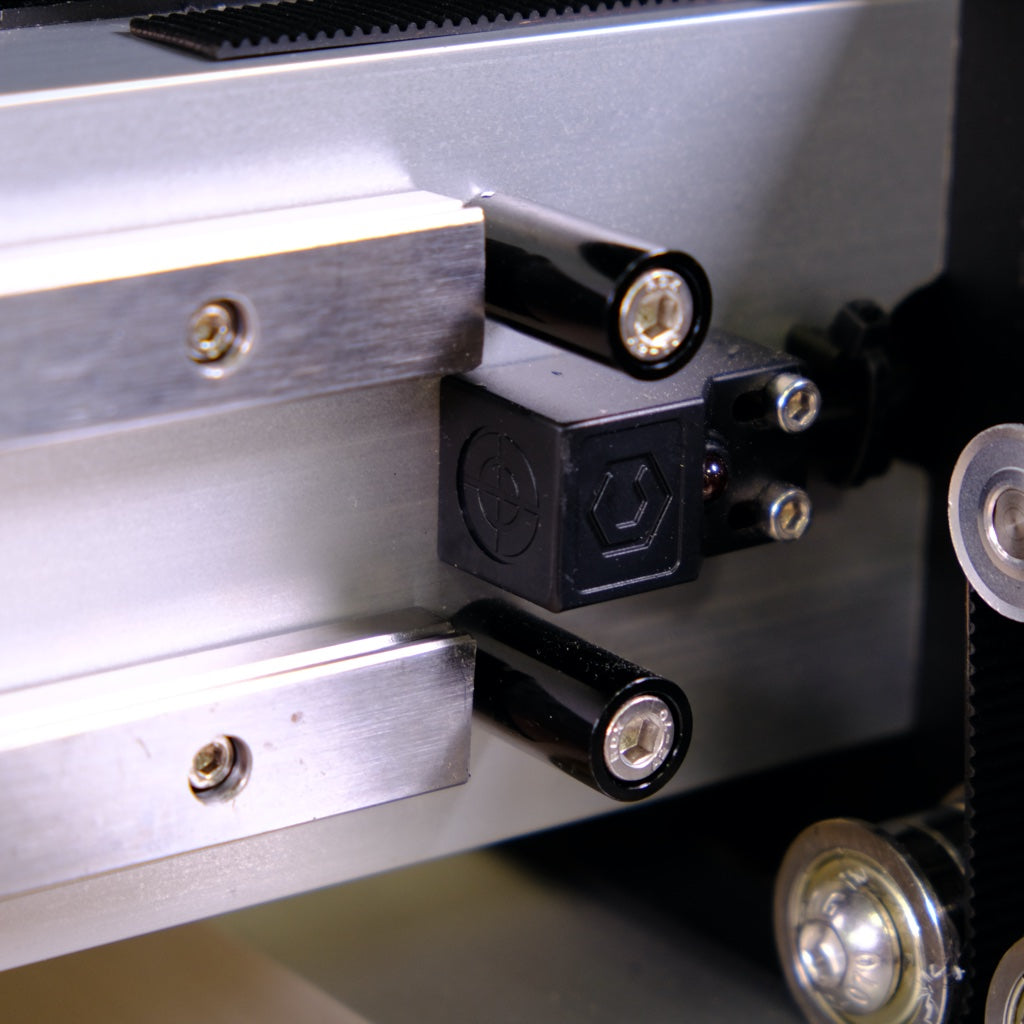

No moving parts and no contact mean these switches are more durable in even the roughest environments.
A shop is a difficult place for precision equipment but our new V3 electronics are more resistant to electromagnetic interference and static discharge than ever.

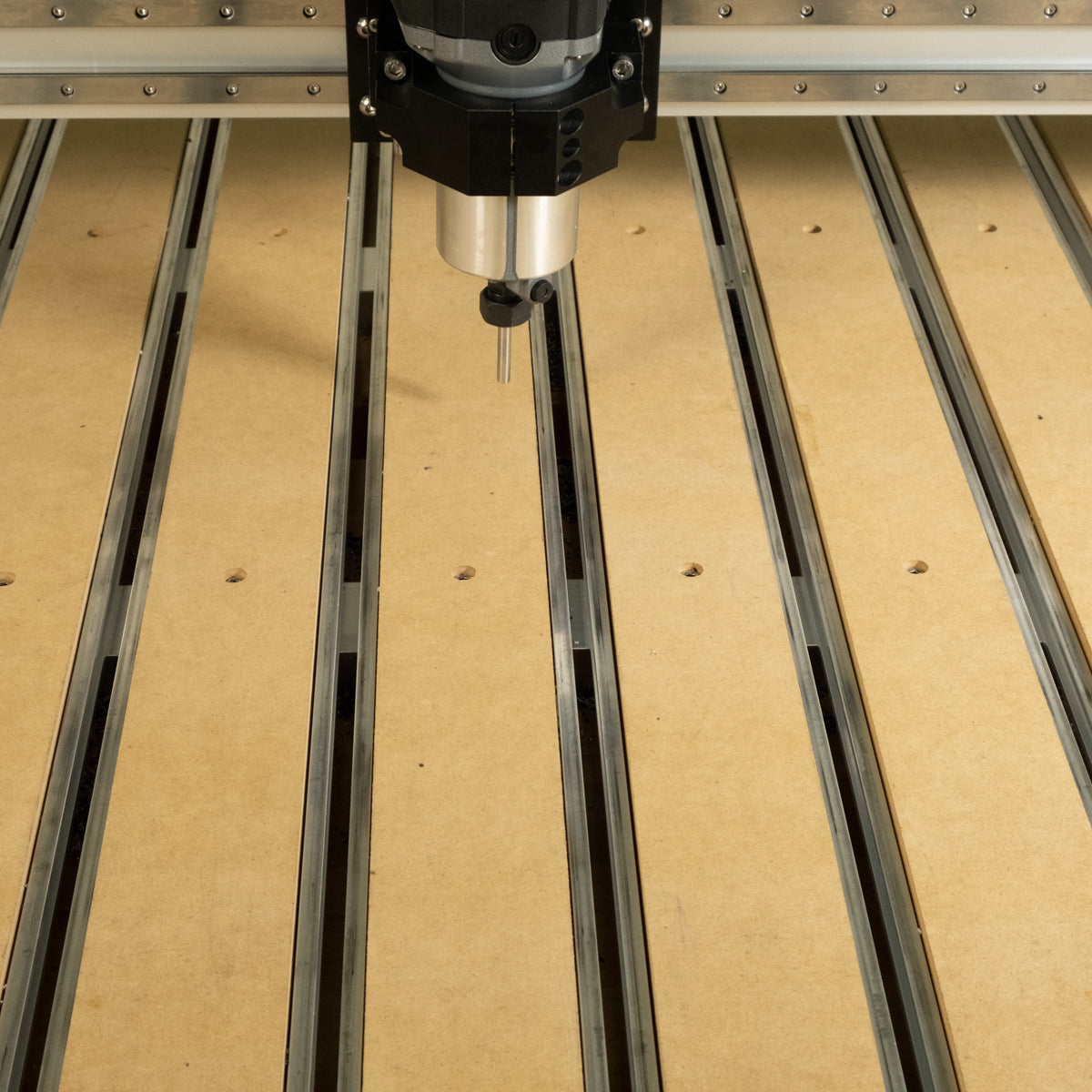

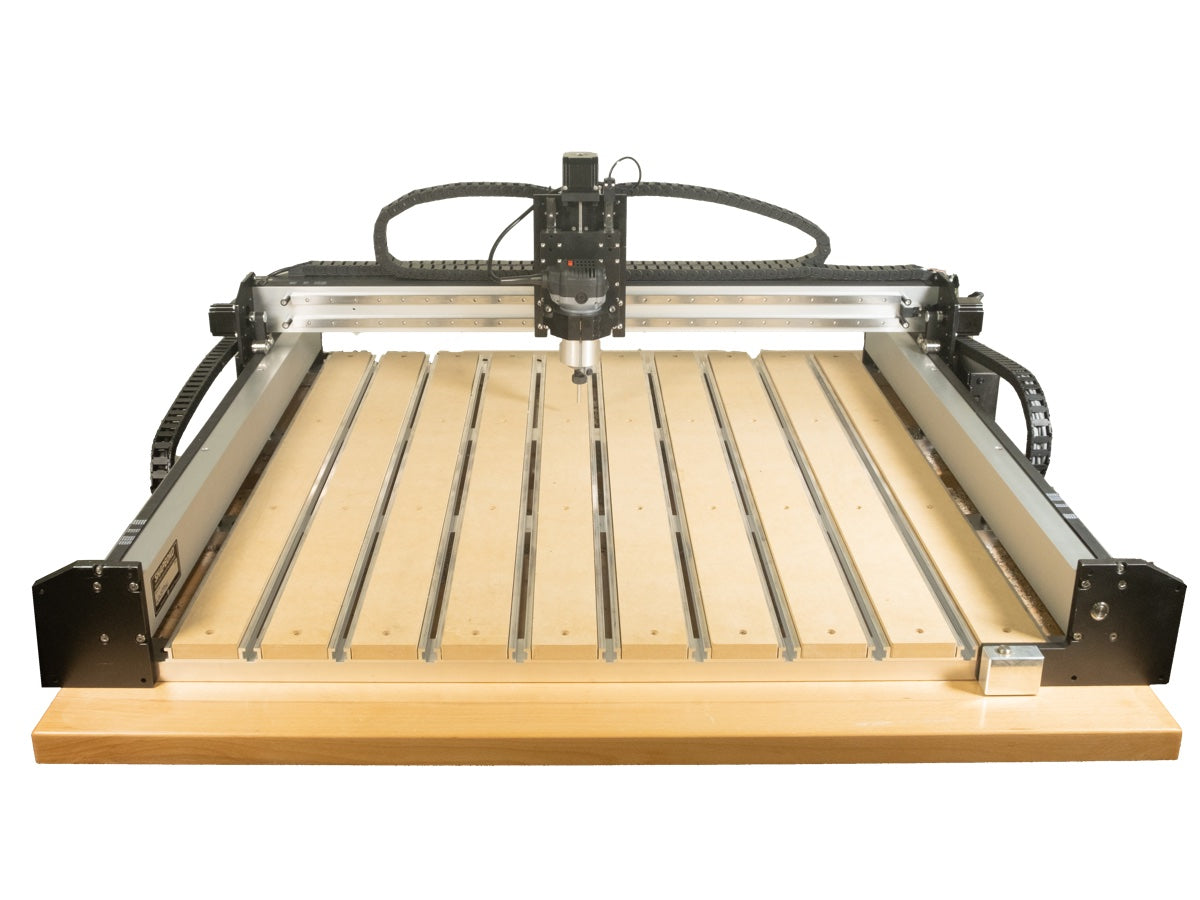

The Hybrid Table on Shapeoko Pro gives you almost unlimited workholding options right out of the box.
Our extrusions have always been overbuilt, even for a much bigger machine, but the Y extrusions are now fully supported by the Hybrid Table, making Shapeoko Pro a much more rigid machine than anything we've ever made before.
The BitSetter makes tool changes a breeze. You'll never want to go back to a machine without it.
Shapeoko Pro uses our Z-Plus Z-axis assembly that's leadscrew-driven with heavy-duty linear bearings.
All of the plates on Shapeoko Pro are machined aluminum for better precision, and let's admit, they look way cooler.

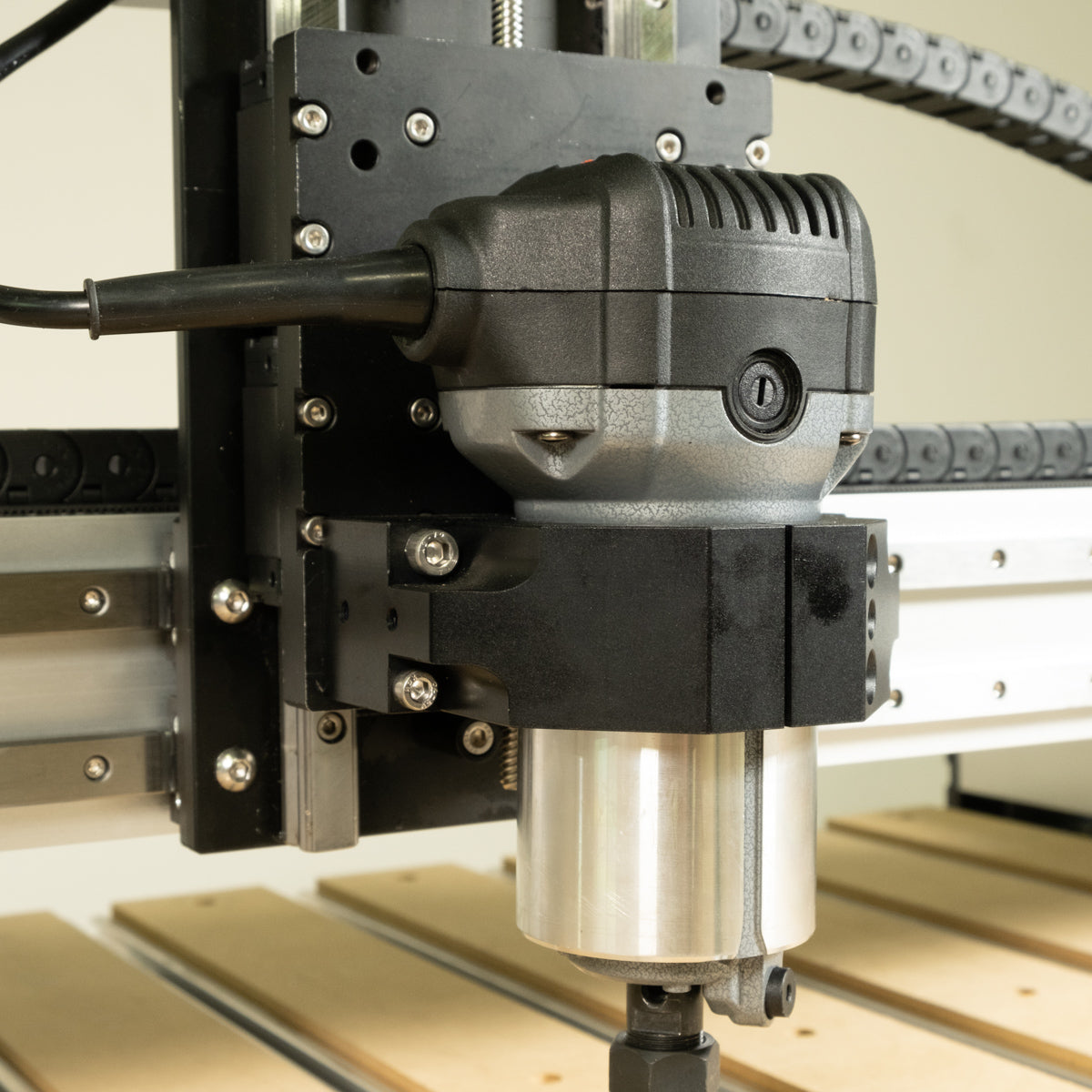

We made the router mount thicker to reduce deflection of the router during heavy cuts.
Our Sweepy 65mm V2 Dust Boot is included with Shapeoko Pro to keep your shop clean and your machine is good working condition.
All Carbide 3D machines include Carbide Create, our full-featured 2D design and machining program, saving you hundreds of dollars on third-party software.
Whether you're starting from a blank page, or loading a design from the web, Carbide Create has everything you need for your projects. It also comes with a comprehensive video training library to get you up and running quickly.
Carbide Create runs on your Windows or Mac computer and you can install it on as many computers as you need to.
Do you have your own CAD/CAM software? No problem, our machines also accept standard G-code so you can use any software you like.
Shapeoko Pro uses a trim router as a spindle. We recommend our Carbide Compact Router, but any router with a 65mm diameter, like the Makita RT0701C, will work.
The Carbide Compact Router is designed for 110V operation, so if you're in a country with 220V power, you should grab a Makita RT0700C locally.
If you're looking for more power, you can upgrade to our Carbide VFD Spindle.
The Shapeoko Pro and Shapeoko HDM are totally different machines so itemized comparisons are difficult. Here's a quick overview:
The Shapeoko HDM was created as a ready-to-run, high-performance CNC router. Every part of it is precision-machined and assembled by hand in our shop for maximum accuracy without any attempt to control the cost of the machine.
In contrast, Shapeoko Pro was designed to deliver maximum value in a CNC router. It can run all day, every day, cranking out large parts.
Which one is right for you?
| Materials to Cut | |
|---|---|
| Wood | All types of wood |
| Plastic | Most plastics, including: ABS, Acrylic, Polycarbonate, Delrin, HDPE, PEEK, PVC |
| Metals | Aluminum, Brass, Copper (Some alloys are more suitable for machining) |
| Size (XXL) | |
| Cutting Area | 33"(X) x 33"(Y) x 4"(Z) |
| Footprint | 50" (X), 42" (Y), 19" (Z) |
| Shipping Box 1 | 58" x 16" x 14", 88lbs |
| Shipping Box 2 | 44" x 19" x 10", 92lbs |
| Size (XL) | |
| Cutting Area | 33"(X) x 17.5"(Y) x 4"(Z) |
| Footprint | 50" (X), 24.65" (Y), 19" (Z) |
| Shipping Box 1 | 58" x 16" x 14", 70lbs |
| Shipping Box 2 | 44" x 19" x 10", 68lbs |
| Size (Standard) | |
| Cutting Area | 17.5"(X) x 17.5"(Y) x 4"(Z) |
| Footprint | 33" (X), 24" (Y), 19" (Z) |
| Shipping Box 1 | 38" x 16" x 14", 58lbs |
| Shipping Box 2 | 26" x 14" x 15", 52lbs |
| Computer Requirements | |
| Mac | OS/X 10.14 or higher |
| Windows | Windows 10 or 11, 64-bit (Intel or AMD) |
Shapeoko takes 2-3 hours to assemble. Most of that time is spent on the Hybrid Table, which has a lot of screws, but the payoff is a rigid machine with great workholding.
Yes! Shapeoko can run 2D or 3D toolpaths with all motors moving simultaneously.
Shapeoko itself is very quiet. All of the noise comes from the spindle (a trim router) and the shop vacuum.
You cannot upgrade the size of a Shapeoko Pro. Upgrading from one size to another doesn't save much money compared to the price of a new machine.
Shapeoko Pro and use any 65mm spindle including the Carbide Compact Router, Makita RT0701C trim router, or our VFD spindles.
We have a lot of users running Vectric software with their Shapeoko.
Fusion 360 comes with a Carbide 3D post processor that works with Shapeoko.
Shapeoko can cut any type of wood from pine, to MDF, to hardwoods like white oak.
Shapeoko can cut any common plastic including ABS, acrylic, polycarbonate, Delrin, HDPE, and PEEK
Shapeoko can cut aluminum but it will cut slower than wood and plastic so you'll want to take your time with it.
Shapeoko can cut brass but it will cut slower than wood, plastic and aluminum so you'll need to take your time with it.
Shapeoko can cut brass and aluminum but harder metals, like steel or stainless steel, are not recommended. We have users that have done it, but cutting steel takes a lot more skill and experience.
Shapeoko works with most free CNC software, but it also includes our Carbide Create so there's nothing more to buy.
Shapeoko comes with a one-year warranty against defects. If you have any problems, we’ll take care of them.
See our warranty here.
We want you to jump into your new Shapeoko CNC router without any fear of damaging anything so our warranty includes the following benefit:
For the first 60 days that you own your Shapeoko, we’ll replace any Carbide 3D-branded item that’s damaged, even if it’s your fault.
Details about what's covered can be found here.
We want you to be successful with your Shapeoko CNC router. That’s why we offer 4, 30-minute 1-on-1 training sessions with a Carbide 3D expert via video chat. We’ll help you get your Shapeoko up and running, answer any questions you have, and help you get started with your first project.
Details can be found here.
If you need help, we are available via:
