Equipped with a dual extrusion 3D printing feature that can reach up to 300 °C

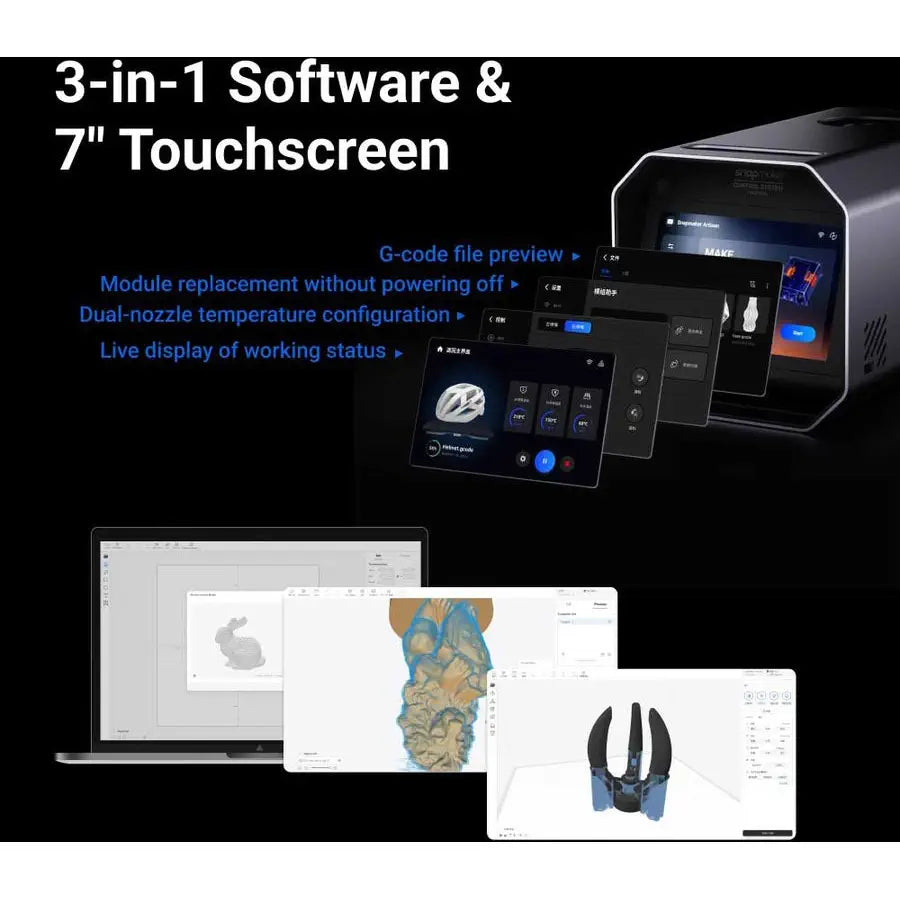

Features a user-friendly 7-inch touchscreen and comes with complimentary Snapmaker Luban software
Designed with quick-swap tool heads and a spacious work area of 400mm for convenience and efficiency

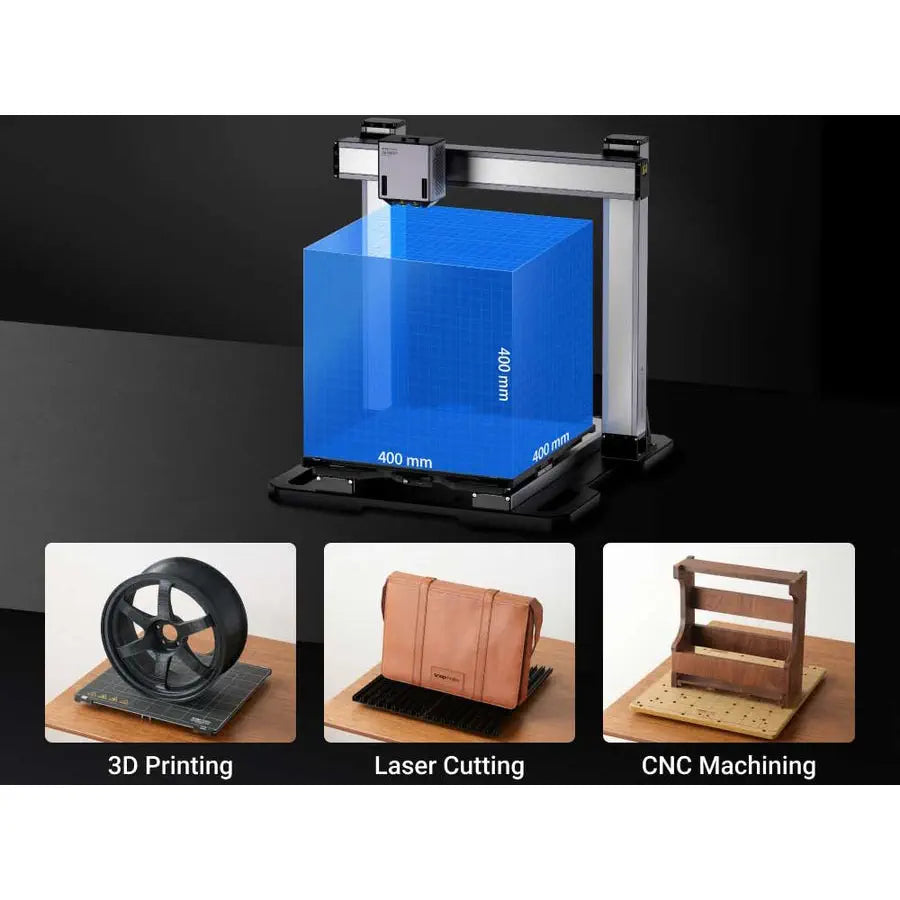

The Snapmaker Artisan Modular 3D Printer is equipped with a dual extrusion 3D printing feature that can reach up to 300 °C. It is powered by industrial-grade transmission technology and boasts a spacious work area of 400 mm.

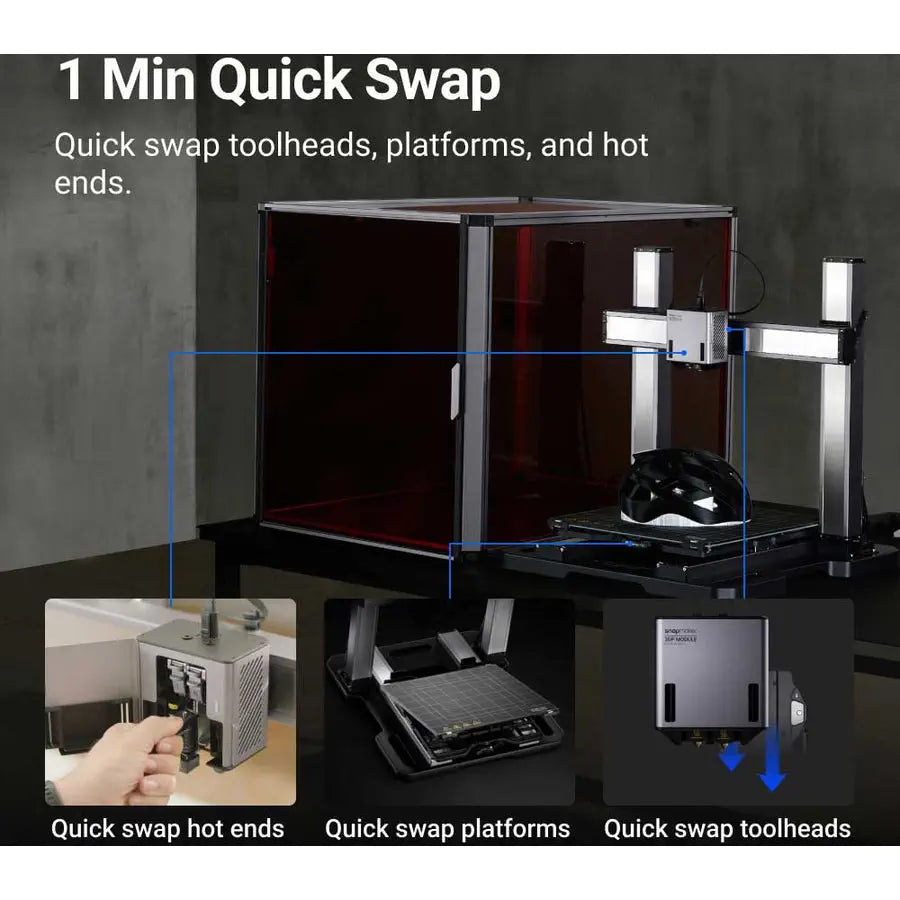

It is designed with quick-swap tool heads, platforms, and hot ends for convenience and efficiency. The printer also features a 7-inch touchscreen with a user-friendly interface and comes with complimentary 3-in-1 software, Snapmaker Luban.

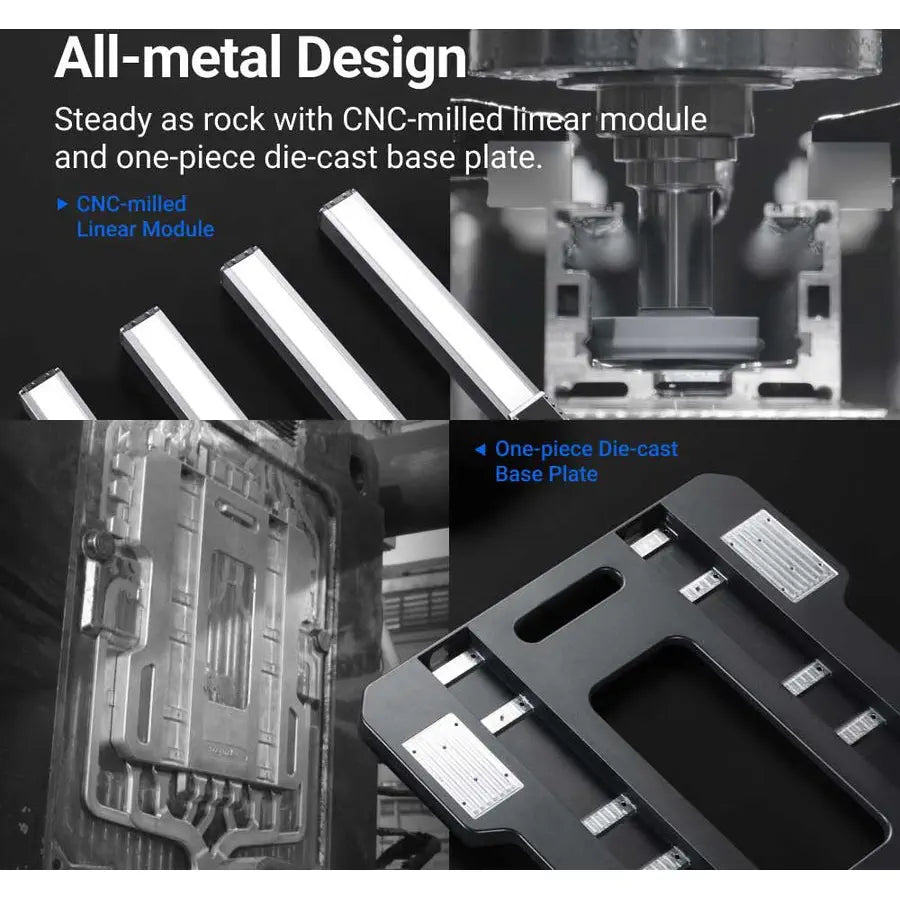

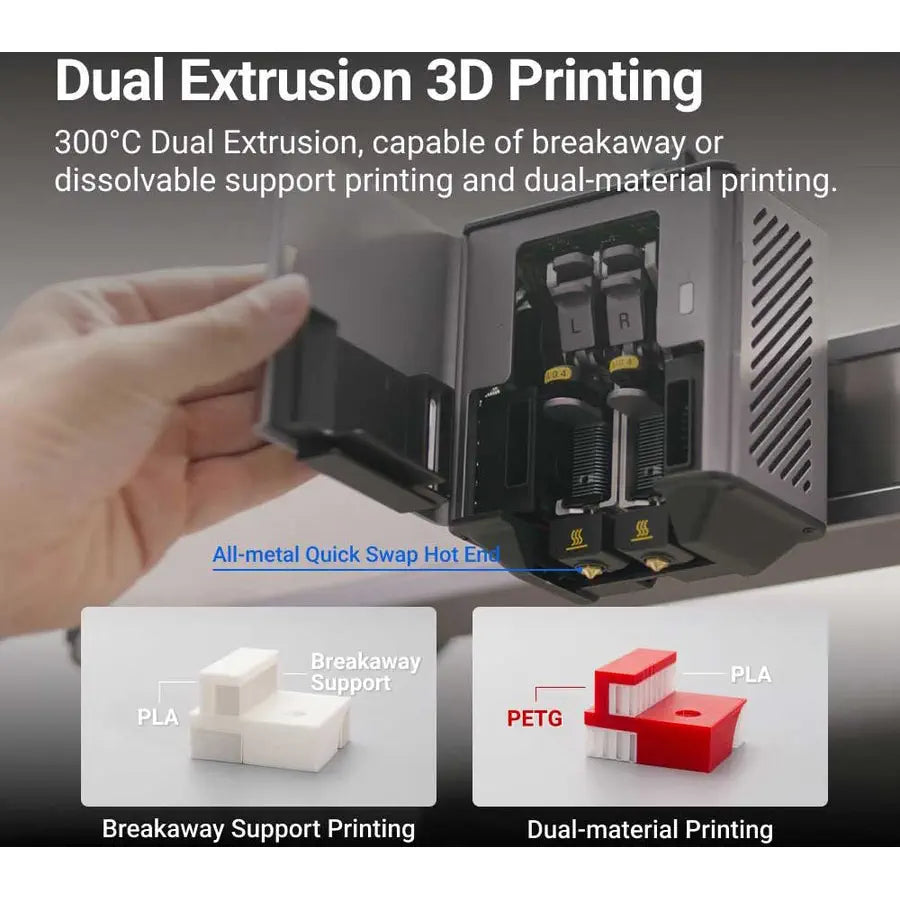

Constructed entirely of metal, the printer includes a laser-proof enclosure for safety. It functions as a direct drive 3D printer and is equipped with two hot ends with 0.4 mm brass nozzles.
The Artisan 3D Printer is primarily designed for 3D printing, but it can be customized for additional functionalities with the Standard 3-in-1 Addons for Artisan 3D Printer (not included).

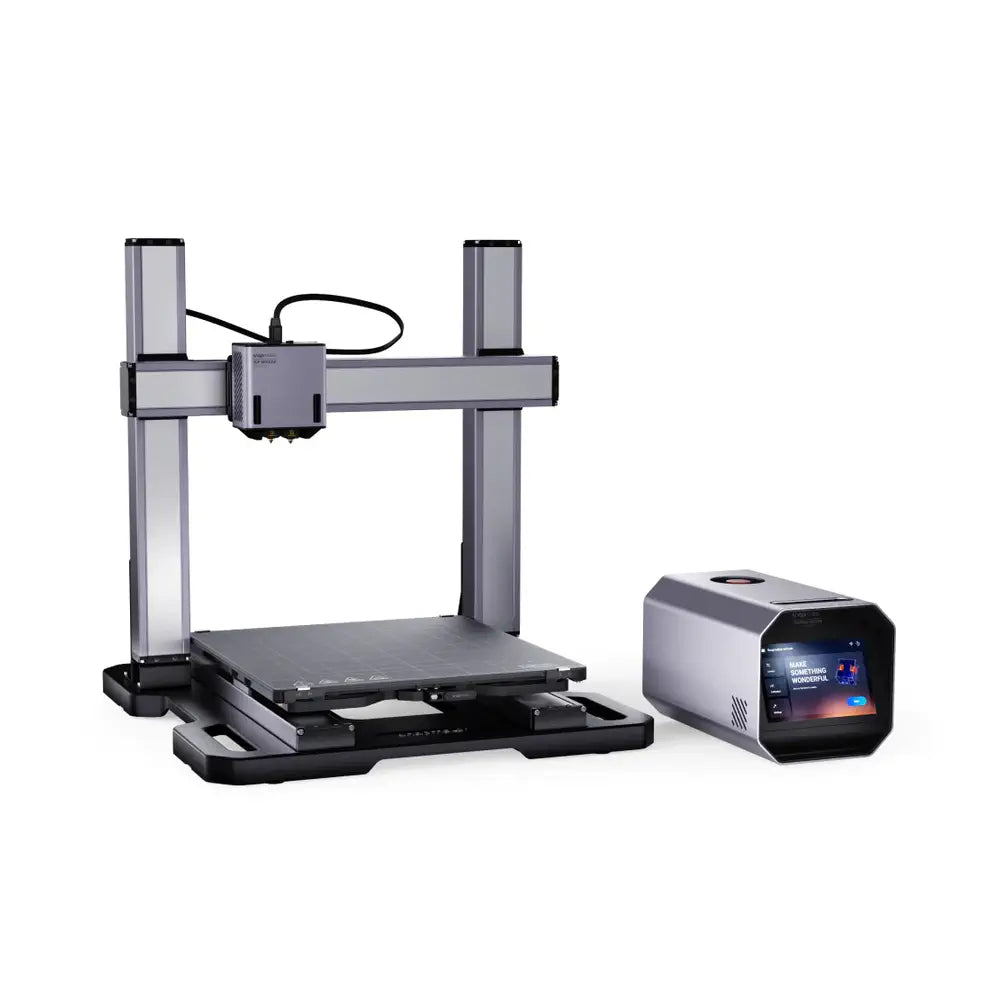

Snapmaker Artisan Modular 3D Printer
Machine: 580 x 620 x 634 mm
849 x 995 x 705 mm with filament holders and hose connector mounted
Integrated Controller Dimensions: 189 x 300 x 191 mm
Data Transmission Methods: Wi-Fi, USB cable, USB flash drive
Supported Software: Snapmaker Luban, and third-party software
OS Supported by Luban: Windows, macOS, Linux

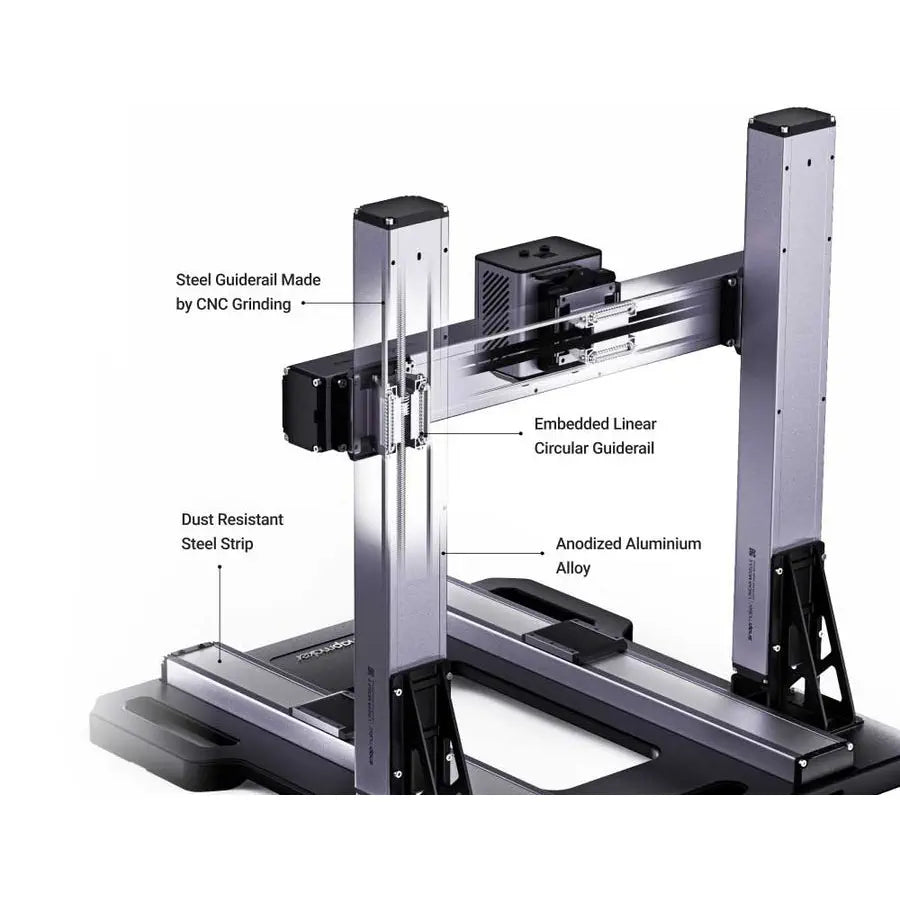

Linear Module
Motor Driver Chip: TMC2209
Repeatability: ± 0.05 mm
X-axis Lead: 40 mm
Y-axis Lead: 40 mm
Z-axis Lead: 8 mm
Integrated Controller Dimensions
Touchscreen Size: 7 inches
Power: 300W + 400W
OS: Android
3D Printing
Work Area (W x D x H):
Artisan Dual Extrusion Module: 350 x 400 x 400 mm (Dual Nozzle)
Artisan Dual Extrusion Module: 350 x 400 x 400 mm (Left Nozzle)
Artisan Dual Extrusion Module: 400 x 400 x 400 mm (Right Nozzle)
Dual Extrusion Module: 350 x 370 x 400 mm (Dual Nozzle)
Dual Extrusion Module: 375 x 370 x 400 mm (Left Nozzle)
Dual Extrusion Module: 400 x 370 x 400 mm (Right Nozzle)
Dual Nozzle Diameter (Standard): 0.4 mm
Nozzle Diameter (Optional): 0.2 mm, 0.6 mm, 0.8 mm
